Static and dynamic dropdown

PreviousDropdown dateNextError summary

Last updated 2 months ago

[SINCE Orbeon Forms 2019.1]

Possible combinations

Combinations of static vs. dynamic, with vs. without search:

Static
Dynamic

Without search

Static dropdown without search

Dynamic dropdown without search

With search

Static dropdown with search

Dynamic dropdown with search

Static vs. Dynamic

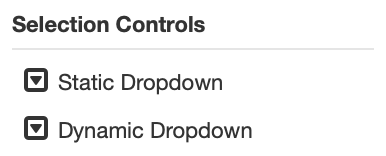

In the Form Builder Toolbox you'll find 2 dropdown components, as shown in the screenshot below. The Static Dropdown is for cases when you, as a form author, want to provide, ahead of time, in Form Builder, the list of all the different choices users will be able to choose from. This is in contrast with the Dynamic Dropdown where the list of choices will be loaded at runtime from a service you provide.

Typically, you'll want to use the Static Dropdown for cases where the number of choices is limited, and doesn't change much over time, and the Dynamic Dropdown for cases where you have a long list of choices and/or those choices can change over time.

With vs. without search

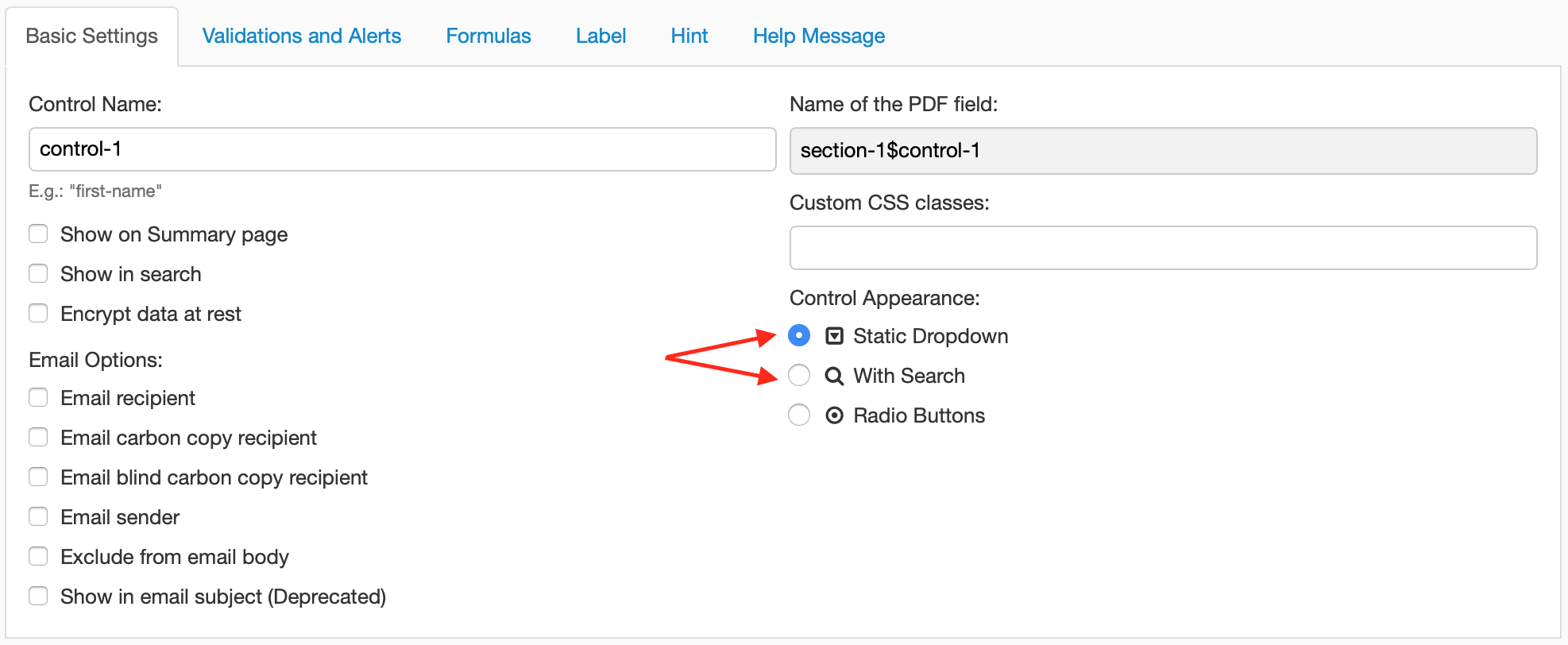

You can choose to have each one of your Static or Dynamic Dropdown show as a regular dropdown native to the browser, or as a dropdown with search. You make that choice in the Control Settings dialog, as highlighted in the screenshot below.

The dropdown "with search" doesn't use the native browser dropdown, but instead uses a dropdown implemented in JavaScript that allows users to search for the choice they want to select by typing part of the label, which is typically useful when the list of choices can be pretty long, and it is thus hard for users to visually just pick one of the choices offered when the dropdown opens.

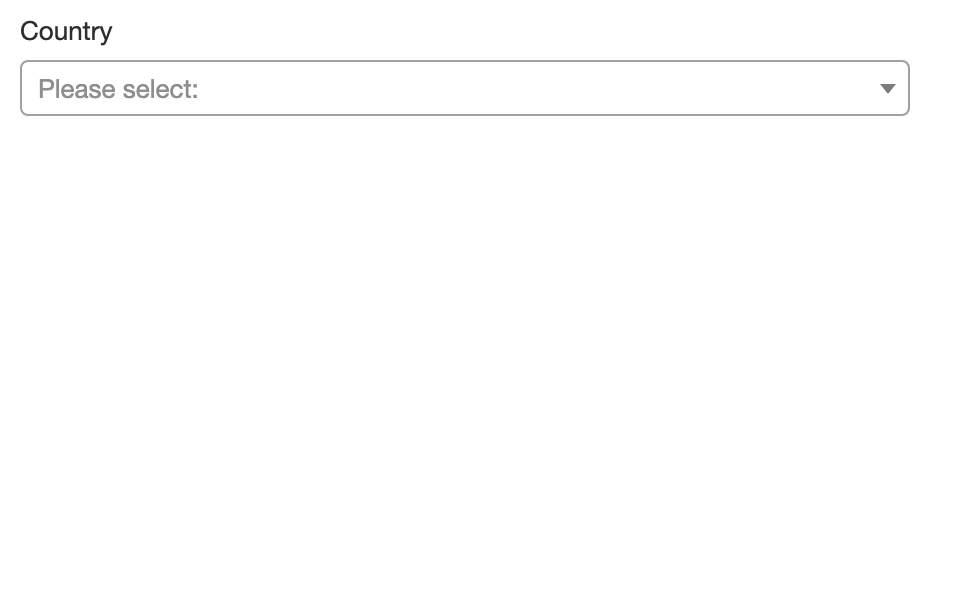

Example with search

Dynamic dropdowns

Features combinations

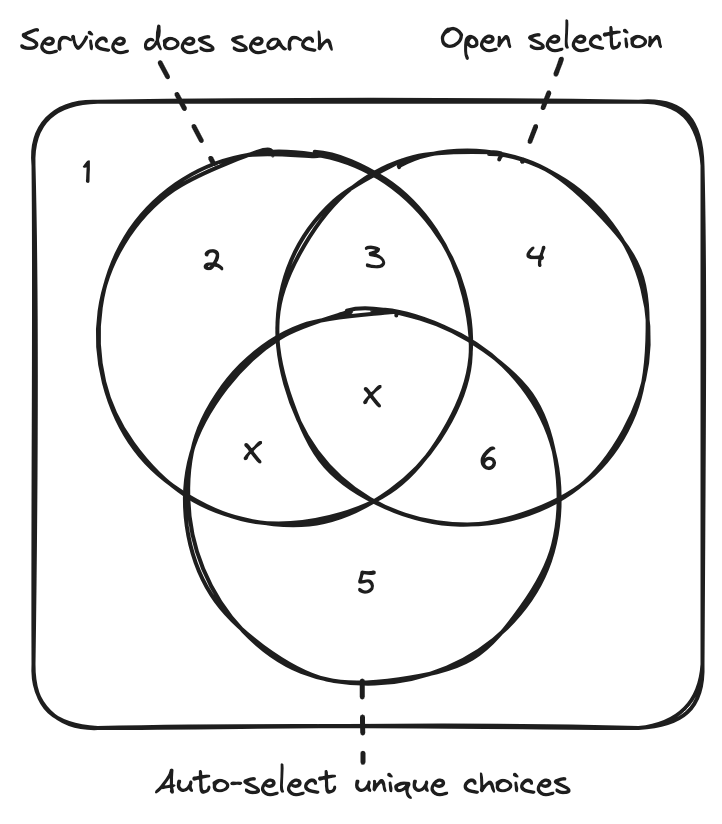

The Venn diagram below illustrates the various ways in which the features of dynamic dropdowns can be combined:

  • Areas marked with an "x" indicate combinations that are not feasible. Specifically, enabling both the service to perform the search and auto-selection simultaneously is impossible. This is because auto-selection requires knowing all possible choices beforehand, necessitating the service to return all possible options. However, when the service conducts a search, it only returns a subset of the possible choices based on the user's input.

  • The remaining areas depict the six feasible combinations of features.

  • Among those areas, caution is advised regarding #6, i.e., combining open selection with auto-selection. Consider a dropdown for a street number and a service that returns all known numbers on a given street. After the user selects a street, if the service only knows about one number on that street, that number will be auto-selected. If open selection is enabled, the user will be able to change the number, but the experience of having an unwanted number selected by default might be confusing. Therefore, it might be wise to be cautious about enabling both features simultaneously.

Extracting choices from your service response

<countries>
    <country>
        <name>Afghanistan</name>
        <us-code>af</us-code>
    </country>
    <country>
        <name>Akrotiri</name>
        <us-code>ax</us-code>
    </country>
    <country>
        <name>Albania</name>
        <us-code>al</us-code>
    </country>
</countries>

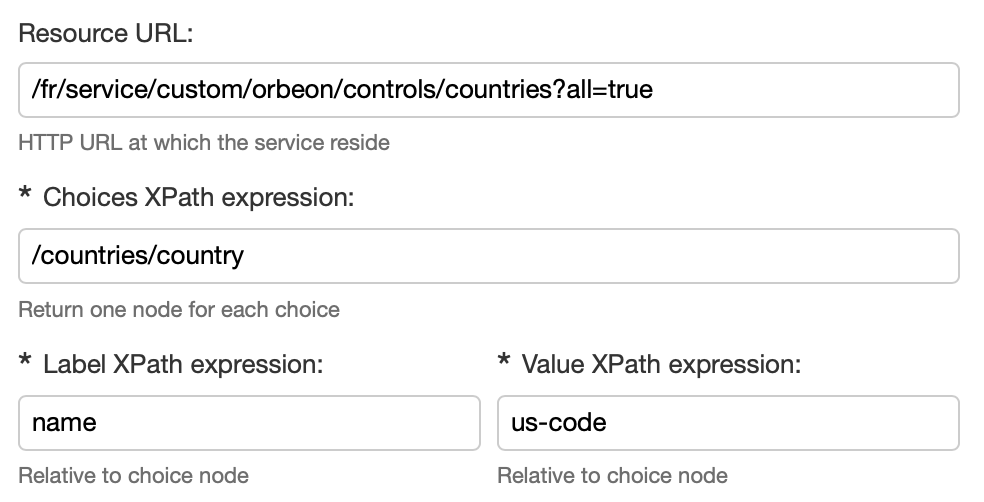

You specify how to extract the necessary information to populate the dropdown through 3 XPath expressions, which you enter in the Control Settings dialog:

  • The "Choices XPath expression" must return one item per choice in the dropdown, or in our example, per country, which is done with /countries/country.

  • The "Label XPath expression" is relative to a given choice as returned by the first expression, and must return the label shown to users in the dropdown. In our example, this will point to the name element.

  • The "Value XPath expression" is similar to the "Label XPath expression" but points to the value stored in the data when users make a selection.

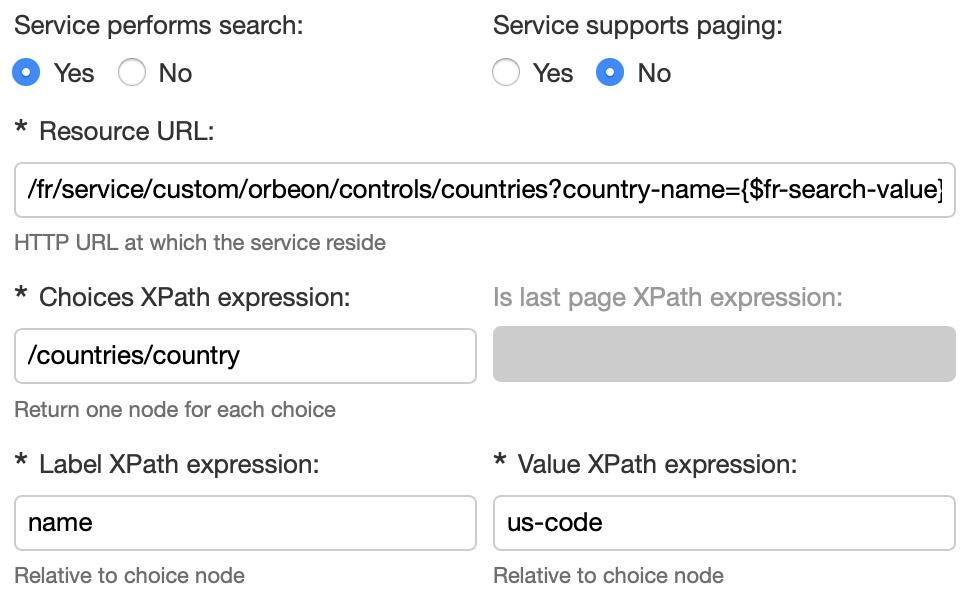

Services performing the search

In most cases, it will be simpler to have your service return all the possible values. But in some cases, the list of all possible values could be extremely large, and returning all them to Orbeon Forms would be prohibitively expensive, or outright impossible. In those cases you'll want the service to only return a subset of all possible choices, based on what users have typed so far. To do so:

  • Make sure you've checked the "With Search" appearance.

  • Select the "Yes" radio button under "Service performs search".

  • Pass the value typed by users as a request parameter to your service by adding {$fr-search-value} as appropriate on the URL, for instance: /fr/service/custom/orbeon/controls/countries?country-name={$fr-search-value}.

With this, Orbeon Forms will automatically call your service repeatedly as users type in the field, this to retrieve a new list of possible choices, and update the dropdown.

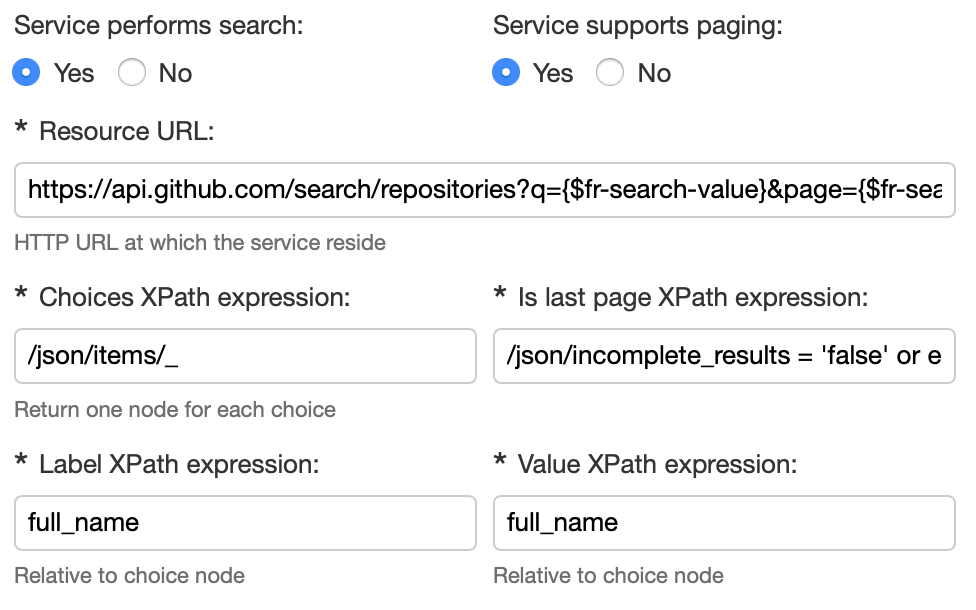

Paging

Services that implement their own search can also implement paging. This is useful for cases where the number of possible values is so large, that you don't want your service to return all the possible values even filtered down by what the user has typed so far, but instead want to return the first, say, 20 choices, and only show the following 20 after users scroll down in the dropdown past the first 20 choices. To do so:

  • Add a request parameter {$fr-search-page} to the URL. The first time the service is called, the value will be 1. If users scroll down in the dropdown, and reach the bottom, they will see a message informing them that more results will be loaded, and your service will be called with the parameter set to 2, and so on.

  • At some point, users might reach the last page, as your service doesn't have more choices to list for the given search string. You'll want to include some information in your response as to whether the last page has been reached, and provide an XPath expression under "Is last page XPath expression" returning true when on the last page.

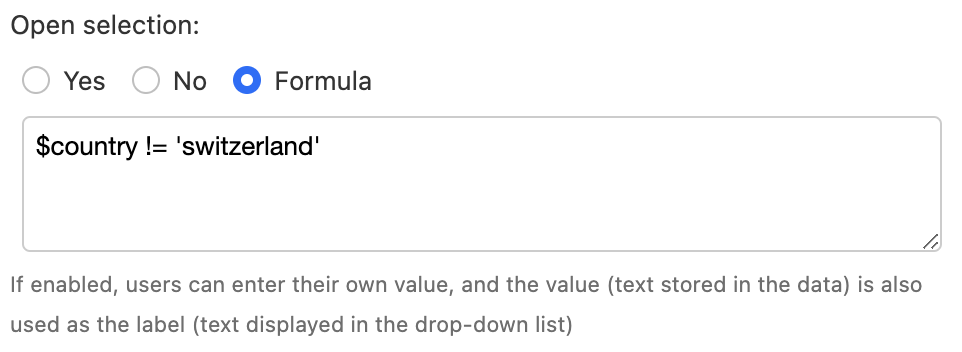

Open selection

You can mark a dynamic search dropdown as open in cases where you want users to be able to enter a value that is not returned by the service. For example, you may use a service that returns all known addresses in a given city, but the service may not be aware of new developments.

In the Control Settings dialog box, open selection can be disabled (using the No radio button, which is the default), enabled (using the Yes radio button), or conditionally enabled (using the Formula radio button). When set to Yes or Formula, the Label and Value formulas must be the same; therefore, the Label formula input field is disabled and its value is automatically set to the Value formula.

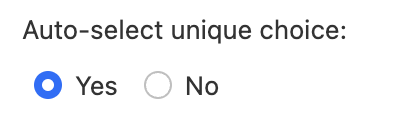

Auto-select unique choice

[SINCE Orbeon Forms 2023.1.1, 2024.1]

In certain scenarios, the list of choices offered by the dropdown may depend on values entered by users through other controls in the form. You might encounter situations where this list includes only one item. In such cases, it may seem redundant to require users to select that single item, as it is their only choice. Therefore, you might want to enable the 'Auto-select unique choice' option, as shown below.

Minimum input length

You can specify a minimum input length, in characters, before a dropdown with search starts displaying choices. This is useful if you have a large number of choices, and the subset of choices returned is unlikely to be useful if users don't type at least a few characters. This is configured by setting the following property.

<property
    as="xs:integer"
    name="oxf.xforms.xbl.fr.databound-select1-search.min-input-length.*.*"
    value="2"/>

[SINCE Orbeon Forms 2023.1.1]

<property
    as="xs:integer"
    name="oxf.xforms.xbl.fr.dropdown-select1-search.min-input-length.*.*"
    value="2"/>

See also

  • Live example

Your service must either return XML or JSON. (If it returns JSON the result will first be , so Orbeon Forms can run XPath expressions on it.) Say your service returns a list of countries as follows, here including just the first 3 countries:

Setup your service as described in the previous section about .

converted to XML
[SINCE Orbeon Forms 2023.1]
[SINCE Orbeon Forms 2023.1]
Form Runner
Form Builder
services performing search
Static Dropdown and Dynamic Dropdown in the Toolbox
Choosing between a regular dropdown and a dropdown with search
Doing a search to select a country
Different combinations of features
Extracting choices with XPath in Control Settings
Service performing search
Service performing search
Open selection inside the Control Settings
Option in the Control Settings dialog
